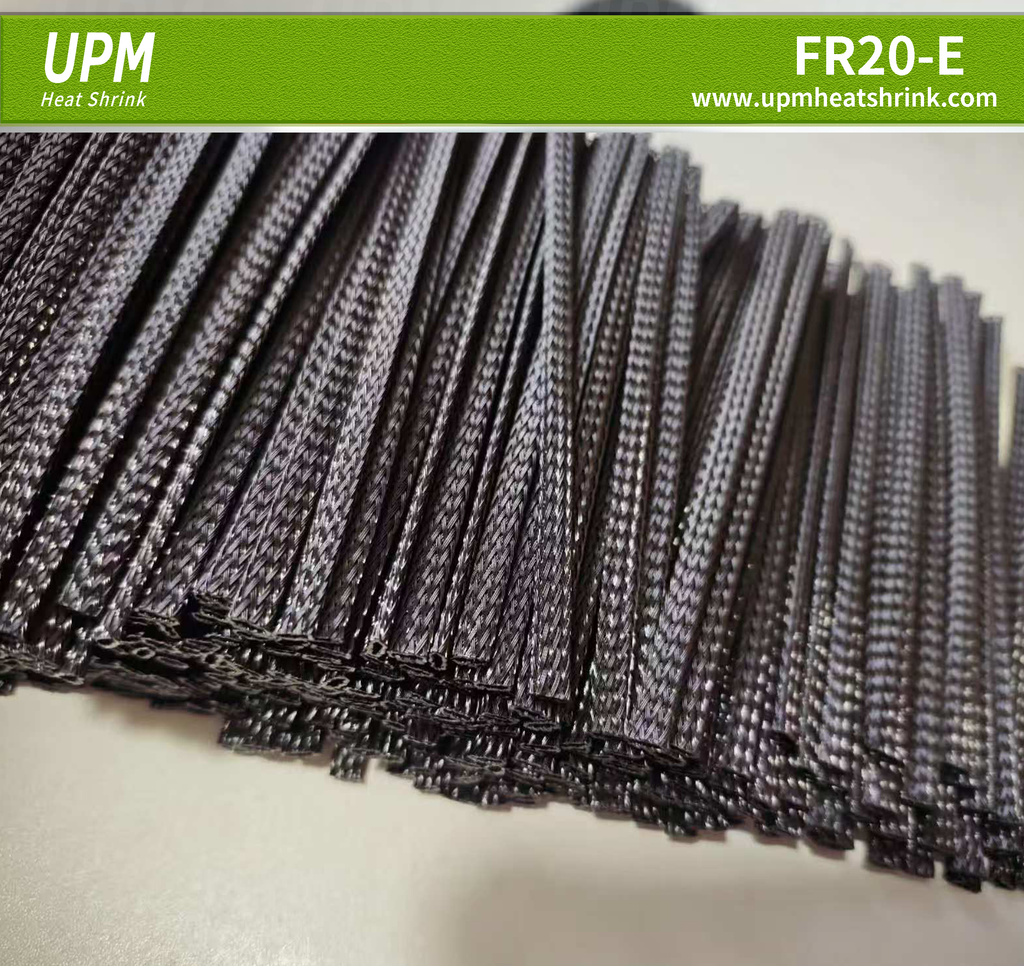

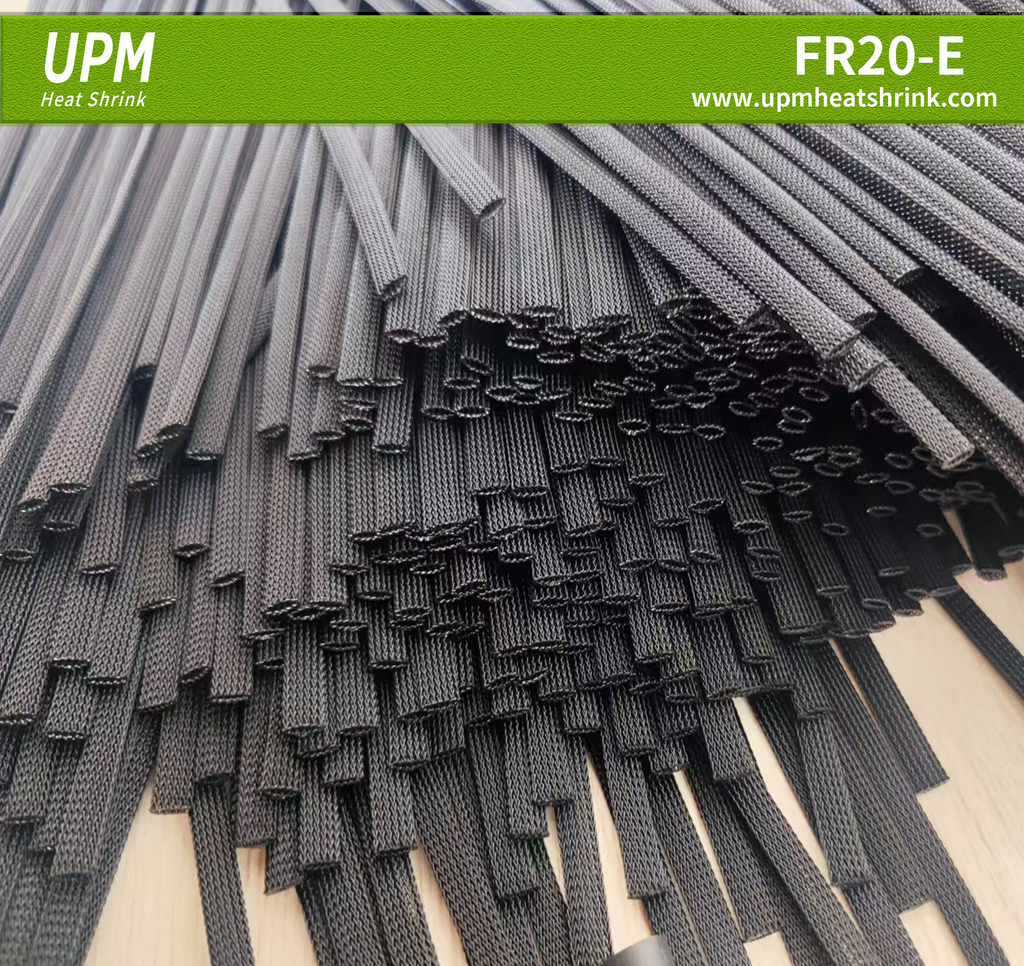

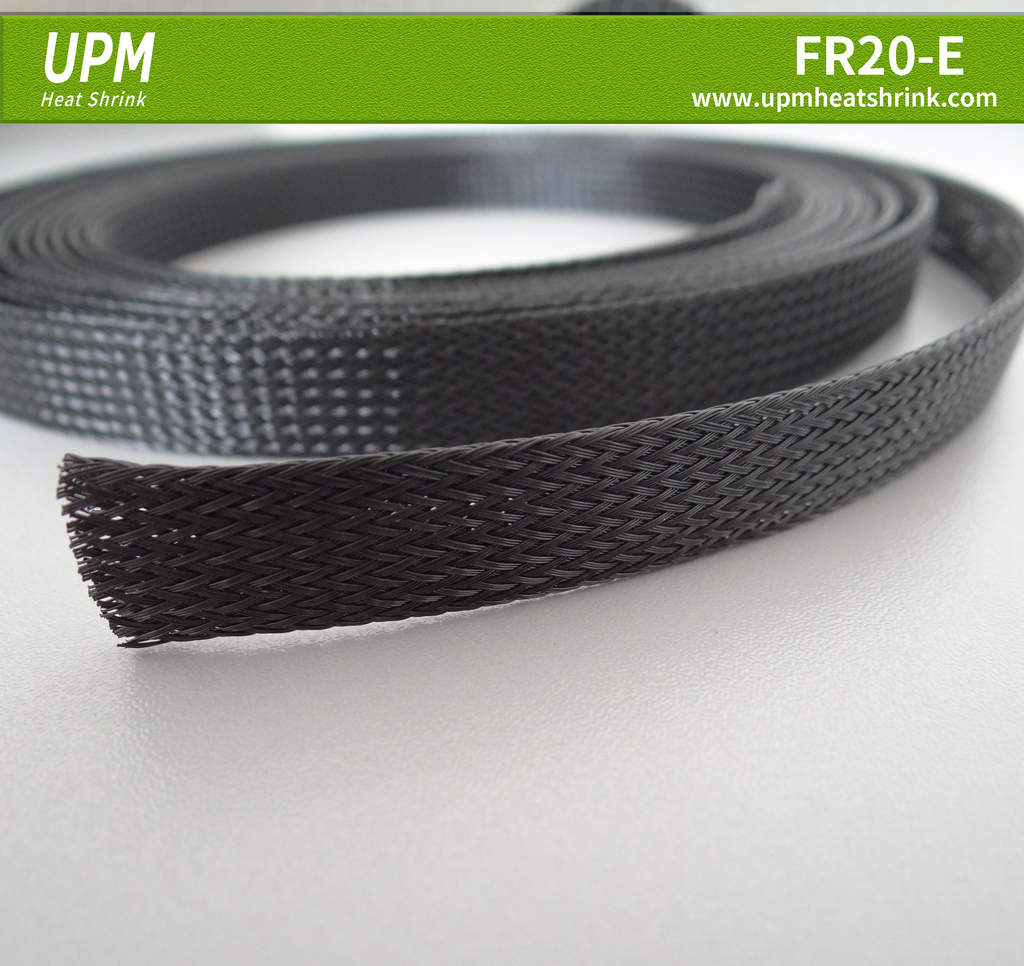

FR20-E Expandable Braided Sleeve
$0.00
Introduction Made of PET polyester monofilament, this product features excellent abrasion resistance, corrosion resistance, and flexibility. It is halogen-free flame retardant, and its unique woven structure allows for...
Introduction
Made of PET polyester monofilament, this product features excellent abrasion resistance, corrosion resistance, and flexibility. It is halogen-free flame retardant, and its unique woven structure allows for expandability and scalability, suitable for wrapping wire harnesses and fluid pipelines. It can smoothly pass through large or irregularly shaped components, with liquid flow in and out without accumulation due to its mesh structure. Widely used in military, automotive, aerospace, and new energy industries for protecting components such as wire harnesses, hoses, and pipes
Features
Operating temperature: -70°C~150°C
Halogen-free, RoHS compliant
Smooth laser or hot knife cutting
Flame retardant UL94 V0
Standard color: Black(-0) , Orange (-3)
| Dimensions | ||||||||
| Part No. FR20-E |
Flattening width | Expandable Range(mm) | ||||||
| inch | mm | Min. (I) | Max. (0) | |||||
| FR20-E-003 | 1/8" | 3 | 1 | 6 | ||||
| FR20-E-006 | 1/4" | 6 | 3 | 9 | ||||
| FR20-E-008 | 5/16" | 8 | 5 | 12 | ||||
| FR20-E-010 | 3/8" | 10 | 了 | 17 | ||||
| FR20-E-012 | 1/2" | 12 | 8 | 20 | ||||
| FR20-E-014 | 9/16" | 14 | 9 | 24 | ||||
| FR20-E-016 | 5/8" | 16 | 10 | 27 | ||||
| FR20-E-019 | 3/4" | 19 | 14 | 30 | ||||
| FR20-E-025 | 1" | 25 | 18 | 33 | ||||
| FR20-E-032 | 1-1/4" | 32 | 20 | 50 | ||||
| FR20-E-038 | 1-1/2" | 38 | 30 | 60 | ||||
| FR20-E-045 | 1-3/4" | 45 | 35 | 75 | ||||
| FR20-E-050 | 2" | 50 | 40 | 80 | ||||
| FR20-E-064 | 2-1/2" | 64 | 45 | 105 | ||||
| FR20-E-076 | 3" | 76 | 64 | 120 | ||||
| Notes | ||||||||
| 1:Flattening width refers to the flat width of the braided sleeve in its natural state 2:Expandable Braided Sleeve has the function of expansion and shrink,and the tolerance of flattening width is large 3:Special packaging or color optional 4:For detailed product parameters,please refer to the product specification |
||||||||
| Technical Data | |||||||||
| Property | Test Method | Requirement | |||||||
| Melting point | ASTM D276 | 240℃~265℃ | |||||||
| Fluid resistance | lh immersion at 23℃ |
Visual check,No deformation or dissolution on the surface |
|||||||
| Heat Aging | 150°℃/240h |
After testing,bend the sample around a tube that is 4times the inner diameter of |
|||||||
| the product,no brittle cracks | |||||||||
| Low-temperature flexibility | -50°℃/4h |
After testing,bend the sample around a tube that is 4 times the inner diameter of the product,no brittle cracks |
|||||||
| Flammability | FMVSS302 | 100mm/min max. | |||||||
