TW03 Self-wrapping Woven Sleeve
$0.00
Introduction Braided by polyester monofilament and multifilament with white tracer thread. It has good wear resistance, fire resistance and heat dissipation, which is used to provide anti-wear protection...
Introduction

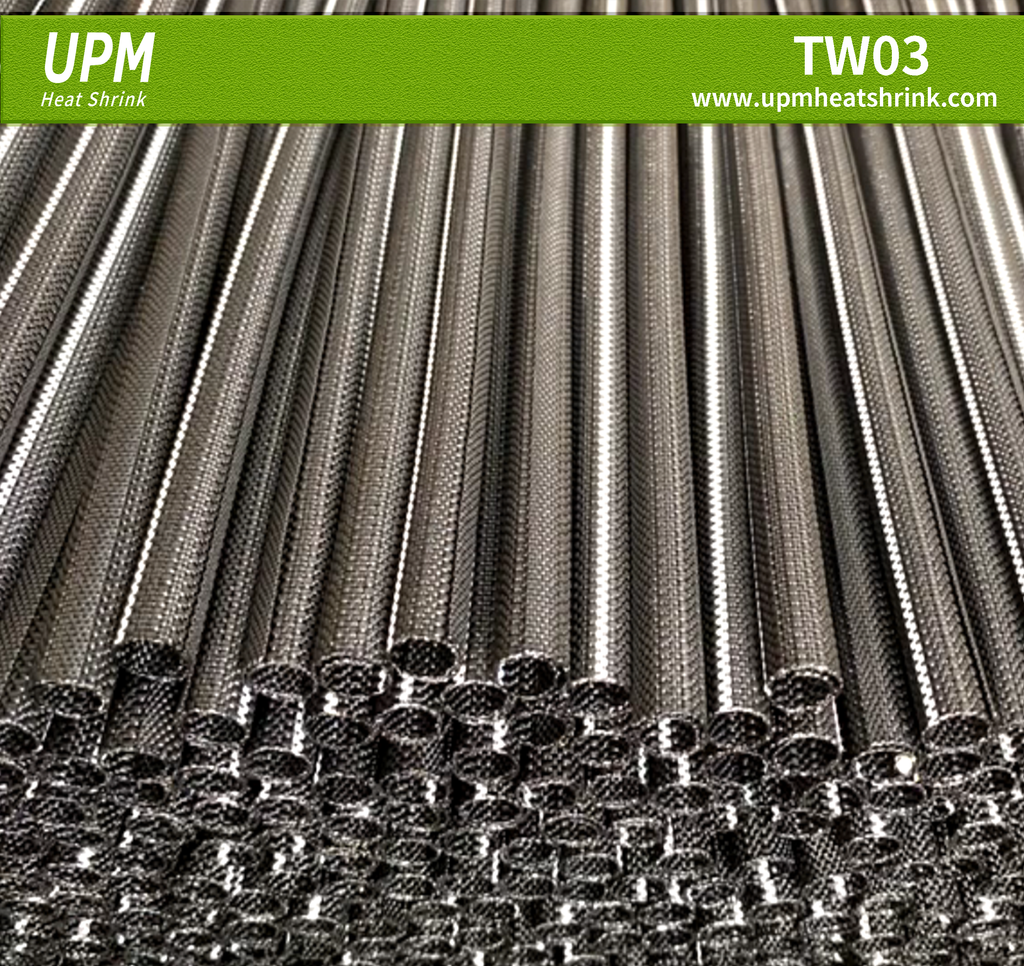

Braided by polyester monofilament and multifilament with white tracer thread. It has good wear resistance, fire resistance and heat dissipation, which is used to provide anti-wear protection and noise suppression; the open structure is convenient for the maintenance, maintenance, modification and overhaul of the covering; it is suitable for the wiring harness and pipeline of traditional road vehicles and new energy vehicles System protection.
Features
Operating temperature: -50°C~150°C
Halogen-free and Environmentally friendly, RoHS compliant
Smooth laser or hot knife cutting
Standard products are not flame retardant, can be customized to meet UL94 HB, FMVSS302 products
Standard color: Black(-0), Orange (-3), Yellow (-4)
with white tracer
Dimensions
| Part No. TWO3 |
Inner diameter (mm) |
Maximum outer diameter of wrapping(mm) |
Overlap Rate (%) |
||||
| TW03-5 | 3~6 | 6 | 20%~60% | ||||
| TW03-8 | 6~9 | 9 | 20%~60% | ||||
| TW03-10 | 8~11 | 11 | 20%~60% | ||||
| TW03-13 | 11~14 | 14 | 20%~60% | ||||
| TW03-16 | 14~17 | 17 | 20%~60% | ||||
| TW03-19 | 17~20 | 20 | 20%~60% | ||||
| TW03-25 | 20~26 | 26 | 20%~60% | ||||
| TW03-32 | 27~33 | 33 | 20%~60% | ||||
| TW03-38 | 33~40 | 40 | 20%~60% | ||||
| TW03-50 | 40~52 | 52 | 20%~60% | ||||
Technical Data
| Property | Test method | Requirement | |||||||
| Melting point | ASTM D276 | 240℃~265℃ | |||||||
| Thickness change rate |
Take a sample with a length of 300mmand place it in an oven at 120℃for 24h.After taking it out,measure 5 points at approximately the same interval for thickness measurementt |
10%min. | |||||||
| (Measured separately before and after the experiment).Change rate=(thickness before | |||||||||
| experiment-thickness after experiment)/thickness before experiment,take the absolute value | |||||||||
| Longitudinal change rate |
Take a test piece with a length of 100mm,place the sample in an oven at 120℃ for 24h,and then take it out for length measurement(Measured separately before and after the experiment).Change rate=(length before experiment-length after experiment)/length before experiment,taking the absolute value. |
10%min. | |||||||
| Abrasion resistance |
Apply a weight of450g to the sample,use 150G gauze wear-resistant belt(10mm wide conductive part,maximum 150mm interval),run at a speed of 1500mm/min,when the sample wears through,(the wire part is in contact with the gauze support pin),record the length of the gauze wear-resistant belt. |
>1000mm | |||||||
| Flammability | FMVSS302 | 100mm/min max. | |||||||
