S1-35 36KV Flame Retardant Bus Bar Insulation Heat Shrink Tube
S1-35
$0.00
S1-35 36KV Flame Retardant Bus Bar Insulation Heat Shrink Tube Introduction Environmental friendly flame retardant polyolefin material, can be applied in 6kV to 36kV power switchgear, providing insulation...

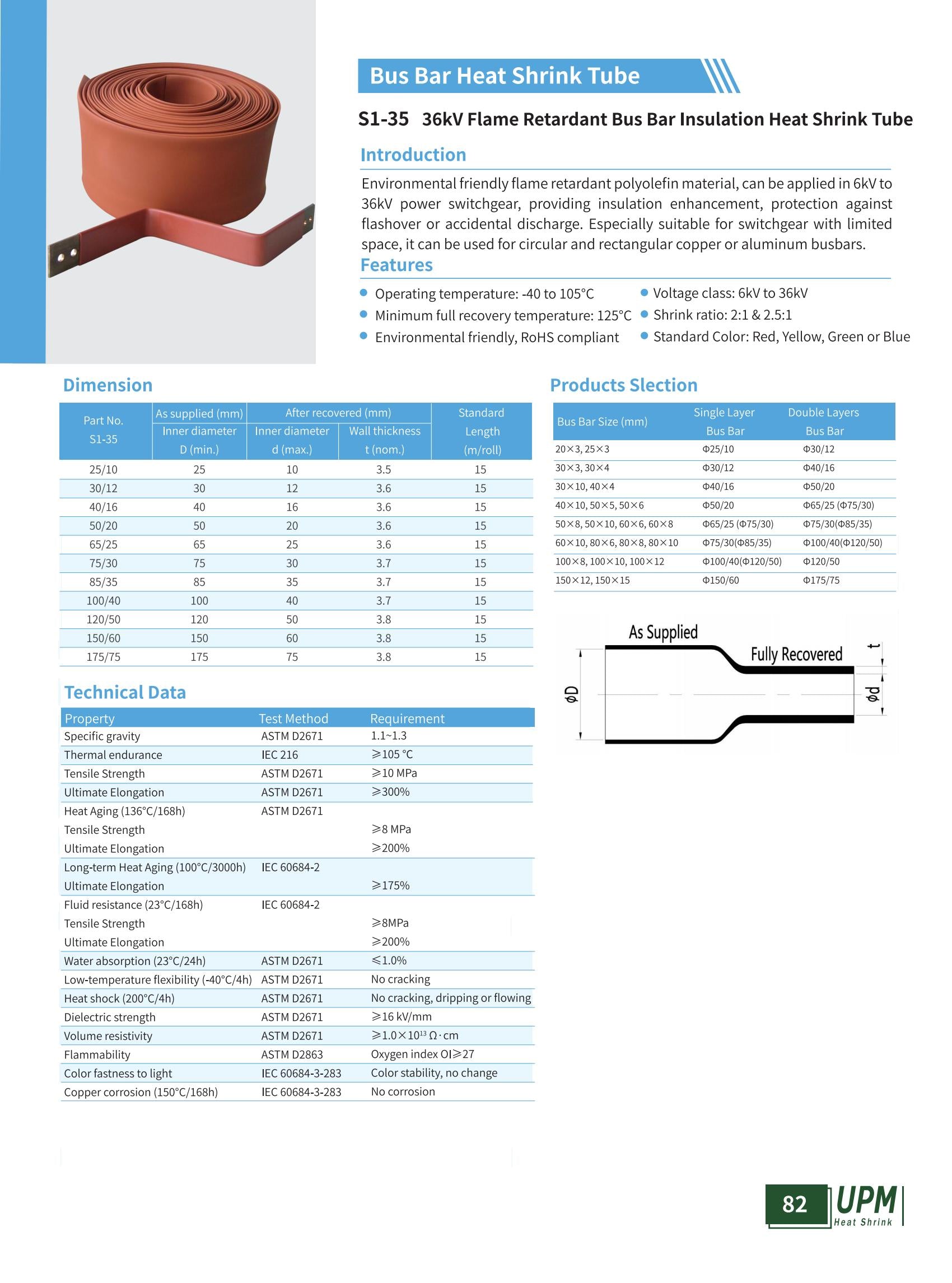

S1-35 36KV Flame Retardant Bus Bar Insulation Heat Shrink Tube
Introduction
Environmental friendly flame retardant polyolefin material, can be applied in 6kV to 36kV power switchgear, providing insulation enhancement, protection against flashover or accidental discharge. Especially suitable for switchgear with limited space, it can be used for circular and rectangular copper or aluminum busbars.
Features
Operating temperature: -40 to 105°C
Minimum full recovery temperature: 125°C
Voltage class: 6kV to 36kV
Environmental friendly, RoHS compliant
Shrink ratio: 2:1 & 2.5:1
Standard Color: Red, Yellow, Green or Blue
Dimension
| Part No. S1-35 |
As supplied(mm) Inner diameter D(min.) |
After recovered(mm) | Standard Length (m/rol) |
|||
| Inner diameter d(max.) |
Wall thickness t(nom.) |
|||||
| 25-10 | 25 | 10 | 3.5 | 15 | ||
| 30-12 | 30 | 12 | 3.6 | 15 | ||
| 40/16 | 40 | 16 | 3.6 | 15 | ||
| 50/20 | 50 | 20 | 3.6 | 15 | ||
| 65/25 | 65 | 25 | 3.6 | 15 | ||
| 75/30 | 75 | 30 | 3.7 | 15 | ||
| 85/35 | 85 | 35 | 3.7 | 15 | ||
| 100/40 | 100 | 40 | 3.7 | 15 | ||
| 120/50 | 120 | 50 | 3.8 | 15 | ||
| 150/60 | 150 | 60 | 3.8 | 15 | ||
| 175/75 | 175 | 75 | 3.8 | 15 | ||
Technical Data
| Property | Test Method | Requirement | ||||
| Specificgravity | ASTM D2671 | 1.1~1.3 | ||||
| Thermal endurance | IEC 216 | ≥105℃ | ||||
| Tensile Strength | ASTM D2671 | ≥10 MPa | ||||
| Ultimate Elongation | ASTM D2671 | ≥300% | ||||
| Heat Aging(136°℃/168h) | ASTM D2671 | |||||
| Tensile Strength | ≥8 MPa | |||||
| Ultimate Elongation | ≥200% | |||||
| Long-term Heat Aging(100°℃/3000h) | IEC60684-2 | ≥175% | ||||
| Ultimate Elongation | ||||||
| Fluid resistance(23°C/168h) | IEC 60684-2 | |||||
| Tensile Strength | ≥8MPa | |||||
| Ultimate Elongation | ≥200% | |||||
| Water absorption (23°C/24h) | ASTM D2671 | ≤1.0% | ||||
| Low-temperature flexibility(40℃/4h) | ASTM D2671 | No cracking | ||||
| Heat shock(200°℃/4h) | ASTM D2671 | No cracking,dripping or flowing | ||||
| Dielectric strength | ASTM D2671 | ≥16kV/mm | ||||
| Volume resistivity | ASTM D2671 | ≥1.0×10¹³Ω ·cm | ||||
| Flammability | ASTM D2863 | Oxygen index Ol≥27 | ||||
| Color fastnessto light | IEC 60684-3-283 | Color stability,no change | ||||
| Copper corrosion(150°℃/168h) | IEC60684-3-283 | No corrosion | ||||
